Renqiu Sanwei Communication Equipment Co., Ltd
|
| Payment Terms: | T/T,L/C,D/A,D/P,WU |
| Place of Origin: | Hebei, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
| every pcs of lnb in an individual giftbox, every 50 pcs of giftboxes in a carton |
| within 10-15 days after receipt of deposit |

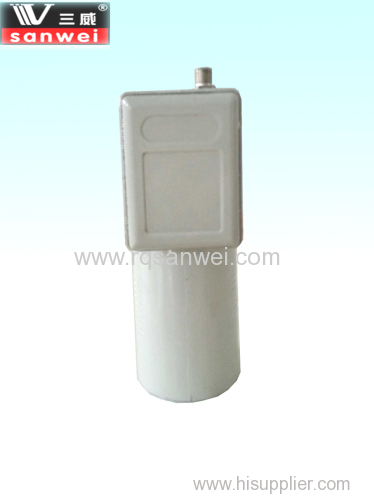

c band lnb:
low noise figure
waterproof slide-down
high stability
| C-LNBF SEPC. | ||
| No. | item | specification |
| 1 | gain | 60dB(type) 55dB(Min) |
| 2 | Gain Flatness Over Full Band | ±3dB |
| 3 | Noise Figure | 0.4dB(type) 0.8dB(max) |
| 4 | Inupt Freq | 3.4~4.2GHz |
| 5 | Output Freq | 950~1750MHz |
| 6 | L.O.Freq: | 5150MHz |
| 7 | Local Oscillator Stability | 5150MHz±3MHz(-40°C~+60°C) |
| 5150MHz±1MHz@Room Temperature | ||
| 8 | Phase Noise Performance | -60dBc/Hz@1KHz(min) |
| -85dBc/Hz@10KHz(min) | ||
| -95dBc/Hz@100KHz(min) | ||
| 9 | input feed | Prime Focus |
| 10 | image rejection | 45dB(min) |
| 11 | Operating Voltage | 15~20V DC |
| 12 | Operating Current | 150mA(max) |
| 13 | output interface | 75Ω F-Type Female |
